Marsh Funnel Viscometer, Stainless Steel Slurry Test Kit, Mud Viscometer, Screen Mesh Size is 1.6mm (12 Mesh), with 946ml Measuring Cup, for Mud Petroleum Drilling Fluid

Usage method:1. Hold the funnel in an upright position with your hand, place the filter at the top of the funnel, and block the outlet of the diversion pipe with your index finger.2. Take the drilling fluid sample and inject it into the funnel vertebral body through the filter until the horizontal level of the drilling fluid reaches the bottom of the screen (at this time it is 1500ml).3. Prepare stopwatch, then release index finger and press stopwatch to record time until the standard 946 measuring cup is full. Record the seconds flowing out of drilling fluid and record funnel viscosity in seconds.Specifications:Material: Stainless steelSieve mesh size: 1.6mm (12 mesh)Function funnel capacity below the bottom: 1500mlAccuracy: When 1500ml of standard distilled water is poured into the funnel, the time for 946ml of standard distilled water to flow out is 26±0.5sProduct includes:1* Marsh Funnel Viscometer

• 【Precise Testing】The Marsh Funnel Viscometer is manufactured to API standards, ensuring accurate drilling fluid viscosity measurement with a flow time of 26±0.5s for 946ml solution when 1500ml distilled water is injected, delivering reliable data for mud petroleum applications.

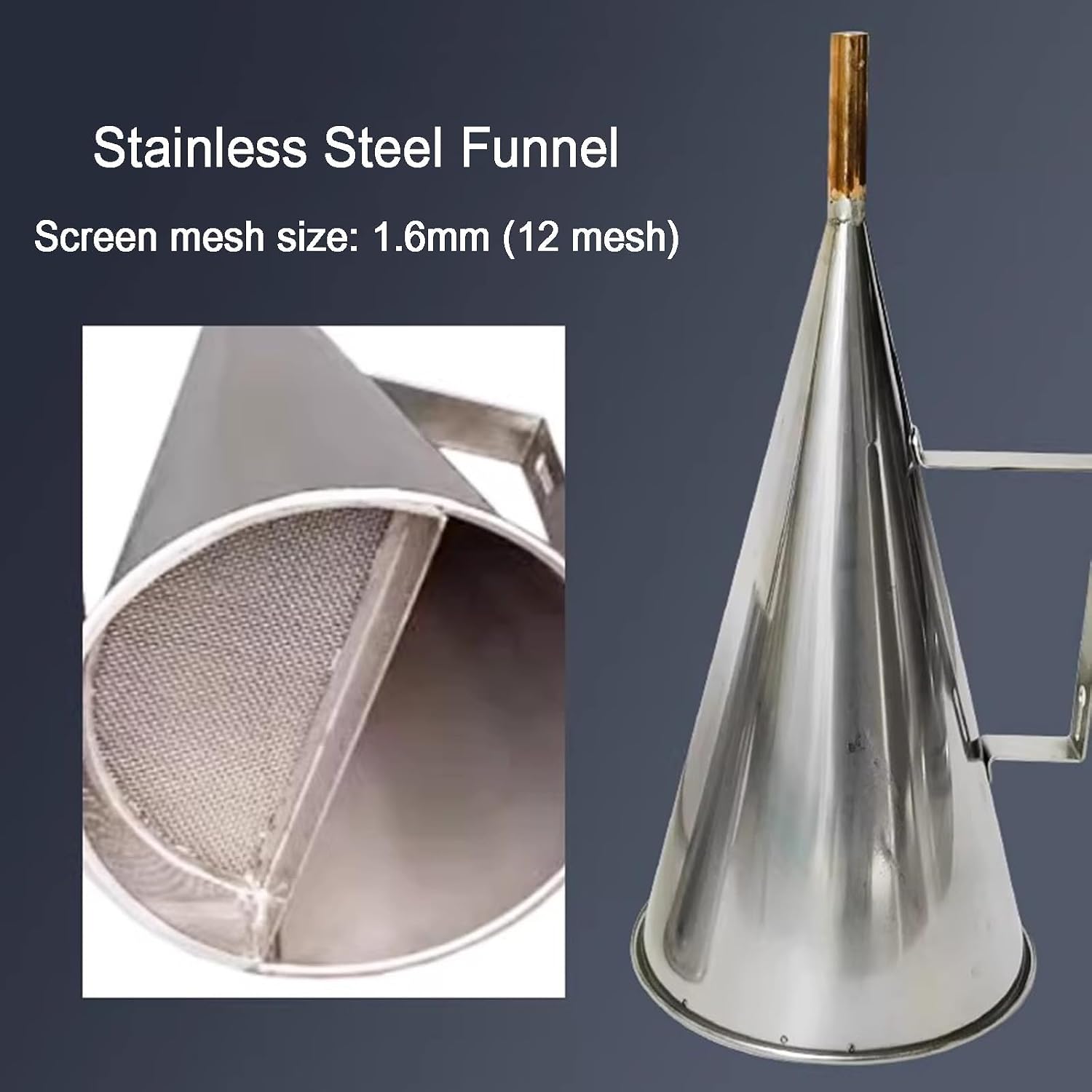

• 【Material】Crafted from high-quality stainless steel, this Stainless steel Slurry Test Kit features a 152mm inner diameter funnel, 305mm height, and a smooth, burr-free 946ml measuring cup for effortless cleaning and durability.
• 【Compatibility】This Mud Viscometer determines relative viscosity by measuring outflow time, accurately reflecting key indicators like colloidal content and specific gravity in drilling fluids for optimal slurry testing.
• 【Complete Accessories】Includes the Marsh Funnel Viscometer, a matching 946ml liquid container, and a 1.6mm (12 mesh) sieve, forming a comprehensive Mud Viscometer kit that effectively filters impurities in petroleum drilling.
• 【Portability】Compact and lightweight, the Stainless steel Slurry Test Kit offers simple, intuitive operation requiring no complex training, enabling quick viscosity testing anytime, anywhere for on-site mud analysis.
